In this tutorial, I will show you how to build an Angular 11 CRUD Application to consume Web APIs, display, modify & search data.
Other versions:
– Angular 8 CRUD example with Web API
– Angular 10 CRUD example with Web API
– Angular 12 CRUD example with Web API
– Angular 13 CRUD example with Web API
– Angular 14 CRUD example with Web API
– Angular 15 CRUD example with Web API
– Angular 16 CRUD example with Web API
– Angular 17 CRUD example with Web API
Fullstack CRUD Application:
– Angular + Node.js Express + MySQL example
– Angular + Node.js Express + PostgreSQL example
– Angular + Node.js Express + MongoDB example
– Angular + Spring Boot + MySQL example
– Angular + Spring Boot + PostgreSQL example
– Angular + Spring Boot + MongoDB example
– Angular + Django example
– Angular + Django + MySQL example
– Angular + Django + PostgreSQL example
– Angular + Django + MongoDB example
Authentication: Angular 11 JWT Authentication example with Web Api
More Practice:
– Angular 11 Form Validation example (Reactive Forms)
– Angular 11 File upload example with Progress bar
– Angular 11 Multiple Files upload example with Progress Bar
Contents
- Overview of Angular 11 CRUD Application
- Web API
- Angular App Component Diagram
- Setup Angular 11 Project
- Project Structure
- Set up App Module
- Define Routes for Angular AppRoutingModule
- Add Navbar and Router View to Angular CRUD App
- Define Model Class
- Create Data Service
- Create Angular Components
- Add new Item Component
- List of items Component
- Item details Component
- Run the Angular 11 CRUD App
- Source Code
- Conclusion
- Further Reading
Overview of Angular 11 CRUD Application
We will build an Angular 11 front-end Tutorial Application in that:
- Each Tutorial has id, title, description, published status.
- We can create, retrieve, update, delete Tutorials.
- There is a Search bar for finding Tutorials by title.

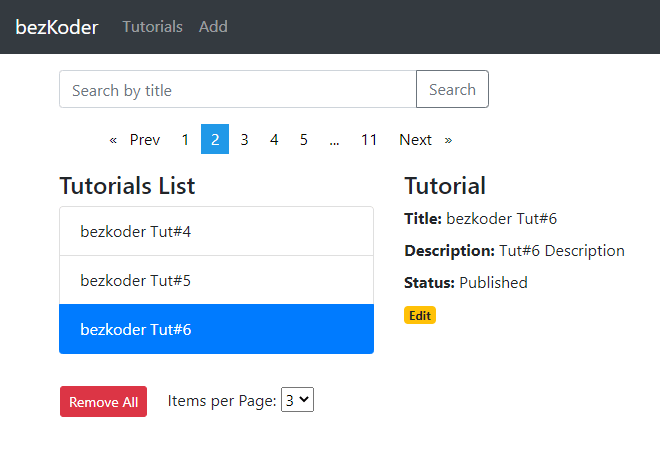

Here are screenshots of our Angular CRUD Application.
– Create an object:
– Retrieve all objects:
– Click on Edit button to update an object:
On this Page, you can:
- change status to Published using Publish button
- delete the Tutorial using Delete button
- update the Tutorial details with Update button
– Search Tutorials by title:
You can implement Form Validation, please visit:
Angular 11 Form Validation example (Reactive Forms)
Web API
The introduction above is for Angular Client with assumption that we have a Server exporting REST APIs:
Methods | Urls | Actions |
---|---|---|
POST | /api/tutorials | create new Tutorial |
GET | /api/tutorials | retrieve all Tutorials |
GET | /api/tutorials/:id | retrieve a Tutorial by :id |
PUT | /api/tutorials/:id | update a Tutorial by :id |
DELETE | /api/tutorials/:id | delete a Tutorial by :id |
DELETE | /api/tutorials | delete all Tutorials |
GET | /api/tutorials?title=[keyword] | find all Tutorials which title contains keyword |
You can find step by step to build a Server like this in one of these posts:
–
–
–
–
–
–
–
–
–
–
–
–
–
–
All of them can work well with this Angular App.
Angular 11 CRUD App Component Diagram
– The App
component is a container with router-outlet
. It has navbar that links to routes paths via routerLink
.
– TutorialsList
component gets and displays Tutorials.
– Tutorial
component has form for editing Tutorial’s details based on :id
.
– AddTutorial
component has form for submission new Tutorial.
– These Components call TutorialService
methods which use Angular HTTPClient
to make HTTP requests and receive responses.
Setup Angular 11 Project
Let’s open cmd and use Angular CLI to create a new Angular Project as following command:
ng new Angular11Crud? Would you like to add Angular routing? Yes? Which stylesheet format would you like to use? CSS
We also need to generate some Components and Services:
ng g s services/tutorialng g c components/add-tutorialng g c components/tutorial-detailsng g c components/tutorials-listng g class models/tutorial --type=model
Now you can see that our project directory structure looks like this.
Project Structure
Let me explain it briefly.
– tutorial.model.ts
exports the main class model: Tutorial
.
– There are 3 components: tutorials-list
, tutorial-details
, add-tutorial
.
– tutorial.service
has methods for sending HTTP requests to the Apis.
– app-routing.module.ts defines routes for each component.
– app
component contains router view and navigation bar.
– app.module.ts
declares Angular components and import necessary modules.
Set up App Module
Open app.module.ts and import FormsModule
, HttpClientModule
:
...import { FormsModule } from '@angular/forms';import { HttpClientModule } from '@angular/common/http';@NgModule({ declarations: [ ... ], imports: [ ... FormsModule, HttpClientModule ], providers: [], bootstrap: [AppComponent]})export class AppModule { }
Define Routes for Angular AppRoutingModule
There are 3 main routes:
– /tutorials
for tutorials-list
component
– /tutorials/:id
for tutorial-details
component
– /add
for add-tutorial
component
app-routing.module.ts
import { NgModule } from '@angular/core';import { Routes, RouterModule } from '@angular/router';import { TutorialsListComponent } from './components/tutorials-list/tutorials-list.component';import { TutorialDetailsComponent } from './components/tutorial-details/tutorial-details.component';import { AddTutorialComponent } from './components/add-tutorial/add-tutorial.component';const routes: Routes = [ { path: '', redirectTo: 'tutorials', pathMatch: 'full' }, { path: 'tutorials', component: TutorialsListComponent }, { path: 'tutorials/:id', component: TutorialDetailsComponent }, { path: 'add', component: AddTutorialComponent }];@NgModule({ imports: [RouterModule.forRoot(routes)], exports: [RouterModule]})export class AppRoutingModule { }
Add Navbar and Router View to Angular 11 CRUD App
Let’s open src/app.component.html, this App
component is the root container for our application, it will contain a nav
element.
<div> <nav class="navbar navbar-expand navbar-dark bg-dark"> <a href="#" class="navbar-brand">bezKoder</a> <div class="navbar-nav mr-auto"> <li class="nav-item"> <a routerLink="tutorials" class="nav-link">Tutorials</a> </li> <li class="nav-item"> <a routerLink="add" class="nav-link">Add</a> </li> </div> </nav> <div class="container mt-3"> <router-outlet></router-outlet> </div></div>
Define Model Class
Our main model class Tutorial
will be exported in tutorial.model.ts with 4 fields:
id
title
description
published
models/tutorial.model.ts
export class Tutorial { id?: any; title?: string; description?: string; published?: boolean;}
Create Data Service
This service will use Angular HTTPClient
to send HTTP requests.
You can see that its functions includes CRUD operations and finder method.
services/tutorial.service.ts
import { Injectable } from '@angular/core';import { HttpClient } from '@angular/common/http';import { Observable } from 'rxjs';import { Tutorial } from '../models/tutorial.model';const baseUrl = 'http://localhost:8080/api/tutorials';@Injectable({ providedIn: 'root'})export class TutorialService { constructor(private http: HttpClient) { } getAll(): Observable<Tutorial[]> { return this.http.get<Tutorial[]>(baseUrl); } get(id: any): Observable<Tutorial> { return this.http.get(`${baseUrl}/${id}`); } create(data: any): Observable<any> { return this.http.post(baseUrl, data); } update(id: any, data: any): Observable<any> { return this.http.put(`${baseUrl}/${id}`, data); } delete(id: any): Observable<any> { return this.http.delete(`${baseUrl}/${id}`); } deleteAll(): Observable<any> { return this.http.delete(baseUrl); } findByTitle(title: any): Observable<Tutorial[]> { return this.http.get<Tutorial[]>(`${baseUrl}?title=${title}`); }}
Create Angular Components
As you’ve known before, there are 3 components corresponding to 3 routes defined in AppRoutingModule
.
Add new Item Component
This component has a Form to submit new Tutorial with 2 fields: title
& description
. It calls TutorialService.create()
method.
components/add-tutorial/add-tutorial.component.ts
import { Component, OnInit } from '@angular/core';import { Tutorial } from 'src/app/models/tutorial.model';import { TutorialService } from 'src/app/services/tutorial.service';@Component({ selector: 'app-add-tutorial', templateUrl: './add-tutorial.component.html', styleUrls: ['./add-tutorial.component.css']})export class AddTutorialComponent implements OnInit { tutorial: Tutorial = { title: '', description: '', published: false }; submitted = false; constructor(private tutorialService: TutorialService) { } ngOnInit(): void { } saveTutorial(): void { const data = { title: this.tutorial.title, description: this.tutorial.description }; this.tutorialService.create(data) .subscribe( response => { console.log(response); this.submitted = true; }, error => { console.log(error); }); } newTutorial(): void { this.submitted = false; this.tutorial = { title: '', description: '', published: false }; }}
components/add-tutorial/add-tutorial.component.html
<div> <div class="submit-form"> <div *ngIf="!submitted"> <div class="form-group"> <label for="title">Title</label> <input type="text" class="form-control" id="title" required [(ngModel)]="tutorial.title" name="title" /> </div> <div class="form-group"> <label for="description">Description</label> <input class="form-control" id="description" required [(ngModel)]="tutorial.description" name="description" /> </div> <button (click)="saveTutorial()" class="btn btn-success">Submit</button> </div> <div *ngIf="submitted"> <h4>Tutorial was submitted successfully!</h4> <button class="btn btn-success" (click)="newTutorial()">Add</button> </div> </div></div>
components/add-tutorial/add-tutorial.component.css
.submit-form { max-width: 400px; margin: auto;}
List of items Component
This component calls 3 TutorialService
methods:
getAll()
deleteAll()
findByTitle()
components/tutorials-list/tutorials-list.component.ts
import { Component, OnInit } from '@angular/core';import { Tutorial } from 'src/app/models/tutorial.model';import { TutorialService } from 'src/app/services/tutorial.service';@Component({ selector: 'app-tutorials-list', templateUrl: './tutorials-list.component.html', styleUrls: ['./tutorials-list.component.css']})export class TutorialsListComponent implements OnInit { tutorials?: Tutorial[]; currentTutorial?: Tutorial; currentIndex = -1; title = ''; constructor(private tutorialService: TutorialService) { } ngOnInit(): void { this.retrieveTutorials(); } retrieveTutorials(): void { this.tutorialService.getAll() .subscribe( data => { this.tutorials = data; console.log(data); }, error => { console.log(error); }); } refreshList(): void { this.retrieveTutorials(); this.currentTutorial = undefined; this.currentIndex = -1; } setActiveTutorial(tutorial: Tutorial, index: number): void { this.currentTutorial = tutorial; this.currentIndex = index; } removeAllTutorials(): void { this.tutorialService.deleteAll() .subscribe( response => { console.log(response); this.refreshList(); }, error => { console.log(error); }); } searchTitle(): void { this.tutorialService.findByTitle(this.title) .subscribe( data => { this.tutorials = data; console.log(data); }, error => { console.log(error); }); }}
components/tutorials-list/tutorials-list.component.html
<div class="list row"> <div class="col-md-8"> <div class="input-group mb-3"> <input type="text" class="form-control" placeholder="Search by title" [(ngModel)]="title" /> <div class="input-group-append"> <button class="btn btn-outline-secondary" type="button" (click)="searchTitle()" > Search </button> </div> </div> </div> <div class="col-md-6"> <h4>Tutorials List</h4> <ul class="list-group"> <li class="list-group-item" *ngFor="let tutorial of tutorials; let i = index" [class.active]="i == currentIndex" (click)="setActiveTutorial(tutorial, i)" > {{ tutorial.title }} </li> </ul> <button class="m-3 btn btn-sm btn-danger" (click)="removeAllTutorials()"> Remove All </button> </div> <div class="col-md-6"> <div *ngIf="currentTutorial"> <h4>Tutorial</h4> <div> <label><strong>Title:</strong></label> {{ currentTutorial.title }} </div> <div> <label><strong>Description:</strong></label> {{ currentTutorial.description }} </div> <div> <label><strong>Status:</strong></label> {{ currentTutorial.published ? "Published" : "Pending" }} </div> <a class="badge badge-warning" routerLink="/tutorials/{{ currentTutorial.id }}"> Edit </a> </div> <div *ngIf="!currentTutorial"> <br /> <p>Please click on a Tutorial...</p> </div> </div></div>
If you click on Edit button of any Tutorial, You will be directed to Tutorial page with url: /tutorials/:id
.
components/tutorials-list/tutorials-list.component.css
.list { text-align: left; max-width: 750px; margin: auto;}
You can add Pagination to this Component, just follow instruction in the post:
Angular 11 Pagination example with ngx-pagination
Item details Component
For getting data & update, delete the Tutorial, this component will use 3 TutorialService
methods:
get()
update()
delete()
components/tutorial-details/tutorial-details.component.ts
import { Component, OnInit } from '@angular/core';import { TutorialService } from 'src/app/services/tutorial.service';import { ActivatedRoute, Router } from '@angular/router';import { Tutorial } from 'src/app/models/tutorial.model';@Component({ selector: 'app-tutorial-details', templateUrl: './tutorial-details.component.html', styleUrls: ['./tutorial-details.component.css']})export class TutorialDetailsComponent implements OnInit { currentTutorial: Tutorial = { title: '', description: '', published: false }; message = ''; constructor( private tutorialService: TutorialService, private route: ActivatedRoute, private router: Router) { } ngOnInit(): void { this.message = ''; this.getTutorial(this.route.snapshot.params.id); } getTutorial(id: string): void { this.tutorialService.get(id) .subscribe( data => { this.currentTutorial = data; console.log(data); }, error => { console.log(error); }); } updatePublished(status: boolean): void { const data = { title: this.currentTutorial.title, description: this.currentTutorial.description, published: status }; this.tutorialService.update(this.currentTutorial.id, data) .subscribe( response => { this.currentTutorial.published = status; console.log(response); this.message = response.message; }, error => { console.log(error); }); } updateTutorial(): void { this.tutorialService.update(this.currentTutorial.id, this.currentTutorial) .subscribe( response => { console.log(response); this.message = response.message; }, error => { console.log(error); }); } deleteTutorial(): void { this.tutorialService.delete(this.currentTutorial.id) .subscribe( response => { console.log(response); this.router.navigate(['/tutorials']); }, error => { console.log(error); }); }}
components/tutorial-details/tutorial-details.component.html
<div> <div *ngIf="currentTutorial.id" class="edit-form"> <h4>Tutorial</h4> <form> <div class="form-group"> <label for="title">Title</label> <input type="text" class="form-control" id="title" [(ngModel)]="currentTutorial.title" name="title" /> </div> <div class="form-group"> <label for="description">Description</label> <input type="text" class="form-control" id="description" [(ngModel)]="currentTutorial.description" name="description" /> </div> <div class="form-group"> <label><strong>Status:</strong></label> {{ currentTutorial.published ? "Published" : "Pending" }} </div> </form> <button class="badge badge-primary mr-2" *ngIf="currentTutorial.published" (click)="updatePublished(false)" > UnPublish </button> <button *ngIf="!currentTutorial.published" class="badge badge-primary mr-2" (click)="updatePublished(true)" > Publish </button> <button class="badge badge-danger mr-2" (click)="deleteTutorial()"> Delete </button> <button type="submit" class="badge badge-success mb-2" (click)="updateTutorial()" > Update </button> <p>{{ message }}</p> </div> <div *ngIf="!currentTutorial.id"> <br /> <p>Cannot access this Tutorial...</p> </div></div>
components/tutorial-details/tutorial-details.component.css
.edit-form { max-width: 400px; margin: auto;}
Run the Angular 11 CRUD App
You can run this App with command: ng serve
.
If you use this front-end app for one of these back-end Rest APIs:
–
–
–
–
–
–
–
–
–
–
–
–
–
–
It configures CORS for port 8081
, so you have to run command: ng serve --port 8081
instead.
Conclusion
Today we’ve built an Angular 11 CRUD Application successfully working with Web API. Now we can, display, modify, delete or search data in a clean way. I hope you apply it in your project at ease.
For adding Form Validation, please visit:
Angular 11 Form Validation example (Reactive Forms)
You can also find how to implement Authentication with the post:
Angular 11 JWT Authentication example with Web Api
Or you can add Pagination Component:
Angular 11 Pagination example with ngx-pagination
Or implement File Upload Component:
Angular 11 File upload example with Progress bar
Happy learning, see you again!
Further Reading
Serverless with Firebase:
– Angular 11 Firebase CRUD Realtime DB | AngularFireDatabase
– Angular 11 Firestore CRUD example | AngularFireStore
– Angular 11 File Upload Firebase Storage: Display/Delete Files example
Integration:
– How to Integrate Angular with Node.js Rest API
– How to Integrate Angular 11 with Spring Boot Rest API
Source Code
You can find the complete source code for this tutorial on Github.
